M2 ST
|
Code # P6385 |
Notes
*M2 is a mid temperature moderate plasticity smooth clay mined in Montana. It is used pure by a number of customers.
Fired bars show it from cone 04 to 6 (bottom upward).
Produced March 14/16 240 boxes pugged PRA stiffness for J.B.K. in Calgary, plus 250 boxes pugged ST stiffness for a customer of Ceramics Canada.
Production has recorded a moisture content of 18.10% for the PRA portion of this run.
Bar specimen #6 (fired to cone 6.0), has tiny bubbles beginning to form on surface of bar, beginning signs of bloating.
Pictures

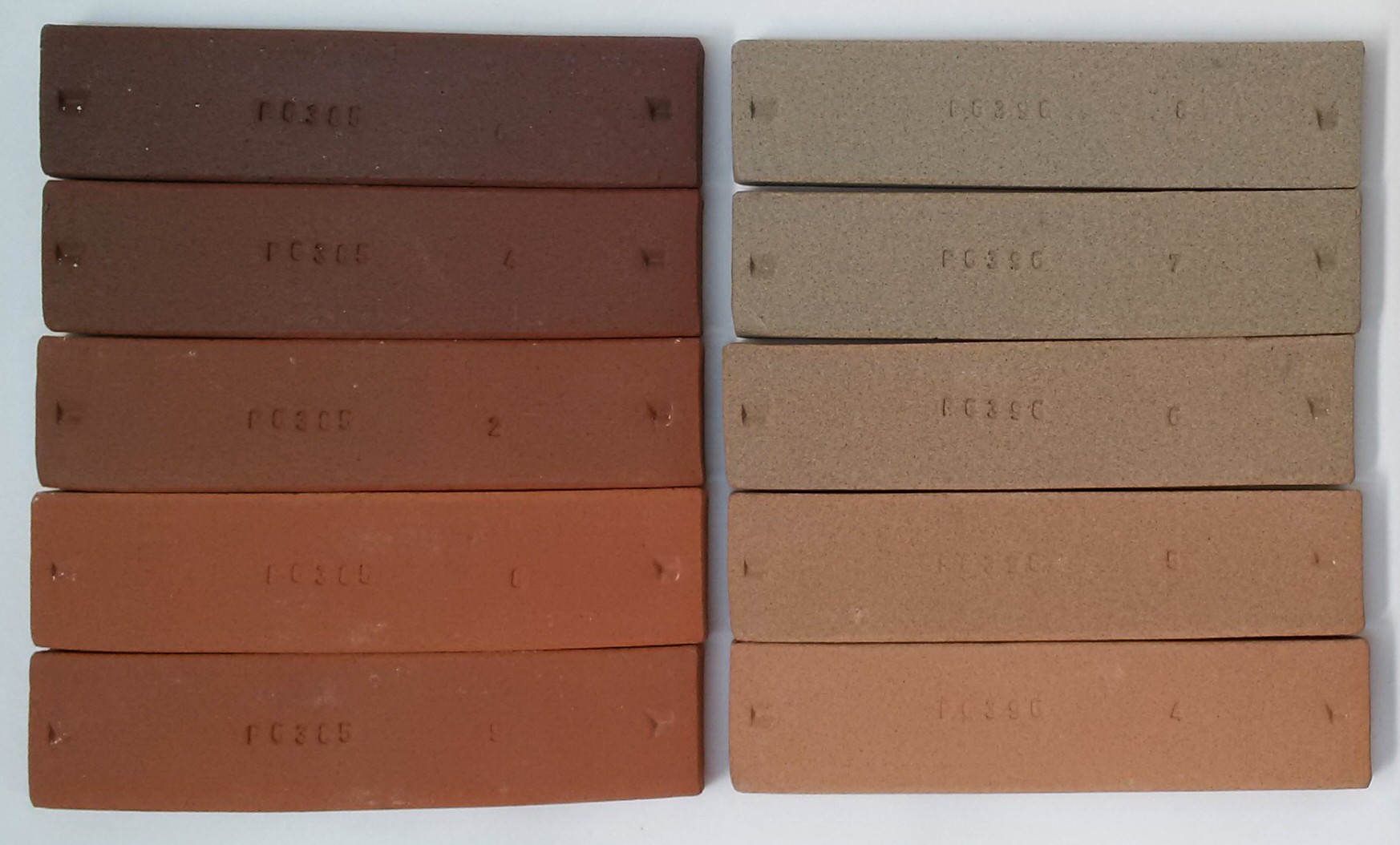

M2 6385 vs M350 6396

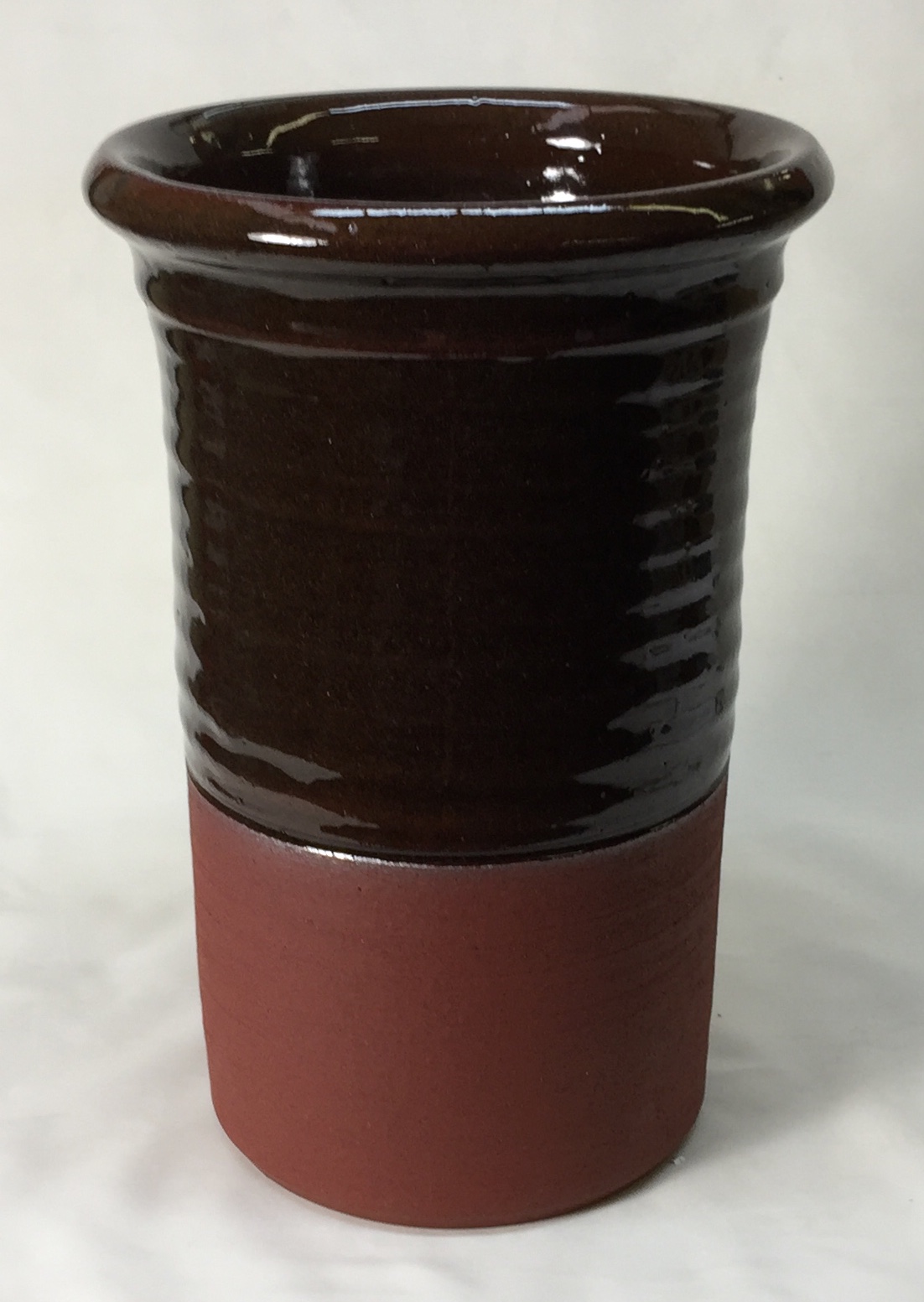

M2 cylinder at cone 6 with AlbertaSlip base
Overfired, on the edge of bloating. But still firing very red.
Alternate Code Number:4056
Testdata
SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | TEMP | DSHR | FSHR | ABS | |
| 6 | 93.35 | 88.90 | 41.54 | 42.44 | 6.0 | bloat | 6.7% | 4.8% | 2.2% |
| 4 | 93.40 | 88.43 | 42.60 | 43.29 | 4.0 | 6.6% | 5.3% | 1.6% | |
| 2 | 93.41 | 89.08 | 42.38 | 43.72 | 1.9 | 6.6% | 4.6% | 3.2% | |
| 9 | 93.27 | 90.3 | 41.5 | 44.14 | -2.0 | 6.7% | 3.2% | 6.4% | |
| 8 | 93.29 | 90.73 | 42.06 | 45.17 | -4.0 | 6.7% | 2.7% | 7.4% |
SOLU - Soluble Salts
| FIRE | |
| 1 | vlight |
DFAC - Drying Factor
| DFAC | SOLD | |
| 1 | D531- | Nil |
CLWC - Clay Water Content - Powder, Plastic
| WPOW | WPUG | POW% | PUG% | |
| 1 | 1.2 | 19.68 |
SIEV - Sieve Analysis 35-325 Wet
| TOT | 48M | 65M | 100M | |
| 1 | 100 | .62 | 6.48 | 7.7 |
LDW - LOI/Density/Water Content
| WWGT | DWGT | H2O | LOI | DENS | |
| 1 | 20.47 | 16.40 | 19.9% |
XML (to paste into Insight)
Born: 2016-03-24, Modified: 2017-10-16 12:06:23
98 Mix
|
Code # L3972 |
Notes
*Low fire red clay mined in Southern Alberta near Elkwater. Very smooth. There fired bars show what it does from cone 06 to cone 2.5.
Pictures

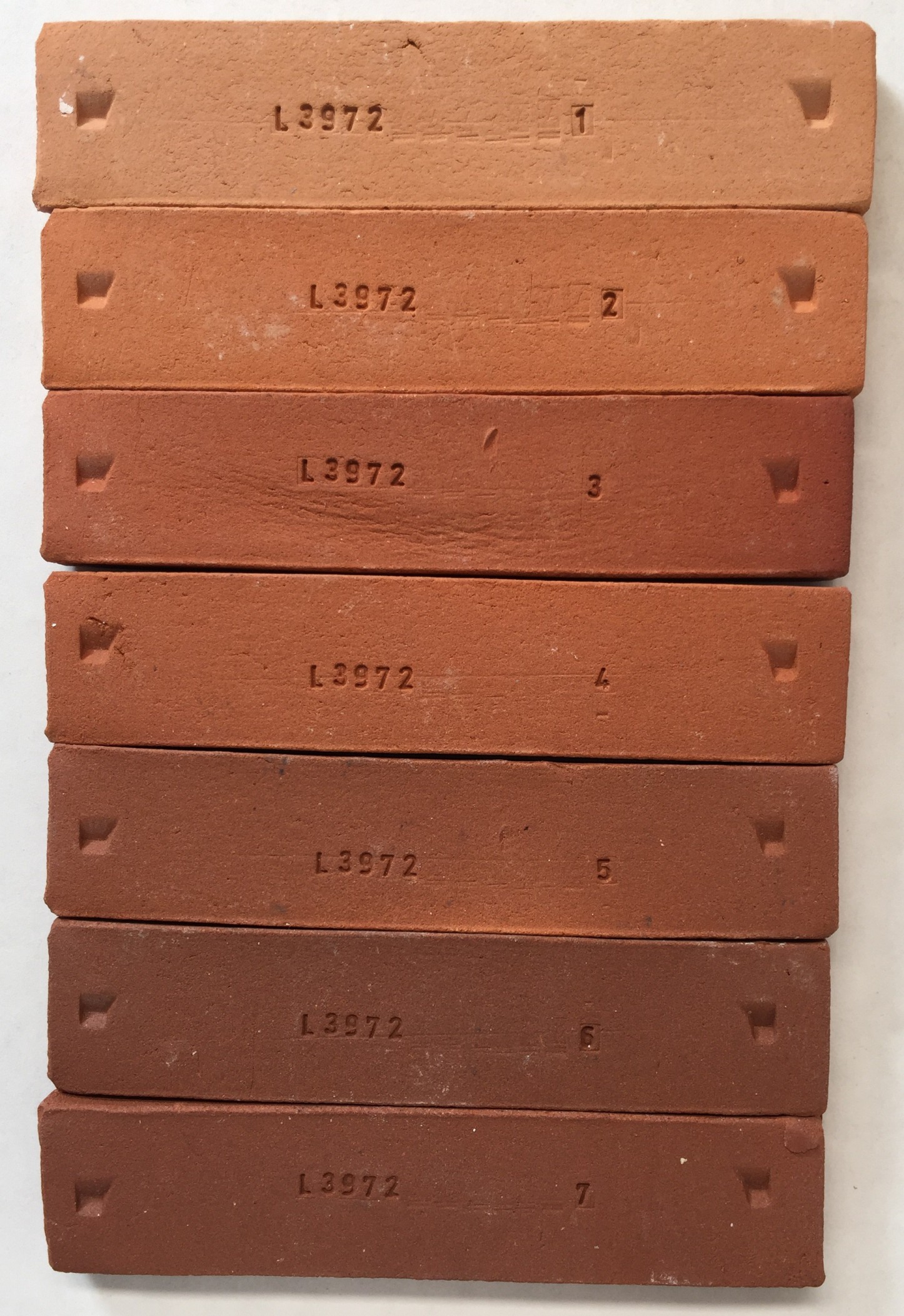

98 Mix fired bars
Testdata
SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | DSHR | FSHR | ABS | |
| 7 | 91.52 | 87.41 | 39.59 | 41.45 | 2.5 | 8.5% | 4.5% | 4.7% |
| 6 | 91.65 | 87.59 | 39.73 | 41.66 | 2.0 | 8.3% | 4.4% | 4.9% |
| 5 | 91.73 | 88.49 | 39.56 | 42.3 | -1.3 | 8.3% | 3.5% | 6.9% |
| 4 | 91.66 | 89.47 | 38.62 | 41.86 | -2.0 | 8.3% | 2.4% | 8.4% |
| 3 | 91.68 | 89.56 | 38.15 | 41.54 | -3.0 | 8.3% | 2.3% | 8.9% |
| 2 | 91.65 | 90.71 | 38.39 | 42.78 | -4.2 | 8.3% | 1.0% | 11.4% |
| 1 | 91.65 | 92.11 | 38.12 | 43.27 | -6.0 | 8.3% | -0.5% | 13.5% |
DFAC - Drying Factor
| DFAC | SOLD | |
| 1 | D570+ | vlight |
SIEV - Sieve Analysis 35-325 Wet
| TOT | 35M | 48M | 65M | 100M | |
| 1 | 100 | .24 | .36 | .82 | 1.63 |
LDW - LOI/Density/Water Content
| WWGT | DWGT | H2O | LOI | DENS | |
| 1 | 27.43 | 21.64 | 21.1% |
XML (to paste into Insight)
Born: 2017-05-11, Modified: 2017-10-16 12:08:56
45D
|
Code # P4808 |
Notes
*Produced Nov 25/04 25 bags @ 50 lb. each.
Clay is smooth and plastic on the wheel, generates a fair amount of slip. This could be used as-as for making pottery. The drying factor demonstrates care is needed for drying.
Some of the bars were discarded. These remaining ones show it from cone 1 to 7 (bottom upward).
Cone 10 ox. bar on the edge of bloating and deformed slightly during firing. Cone 6 bar also show signs of bloating (with tiny bubbles beginning to appear on face of bar). The cone 5 bar is just beginning to have a shiny appearance to it.
Was used in an early version of Alberta Slip.
Pictures

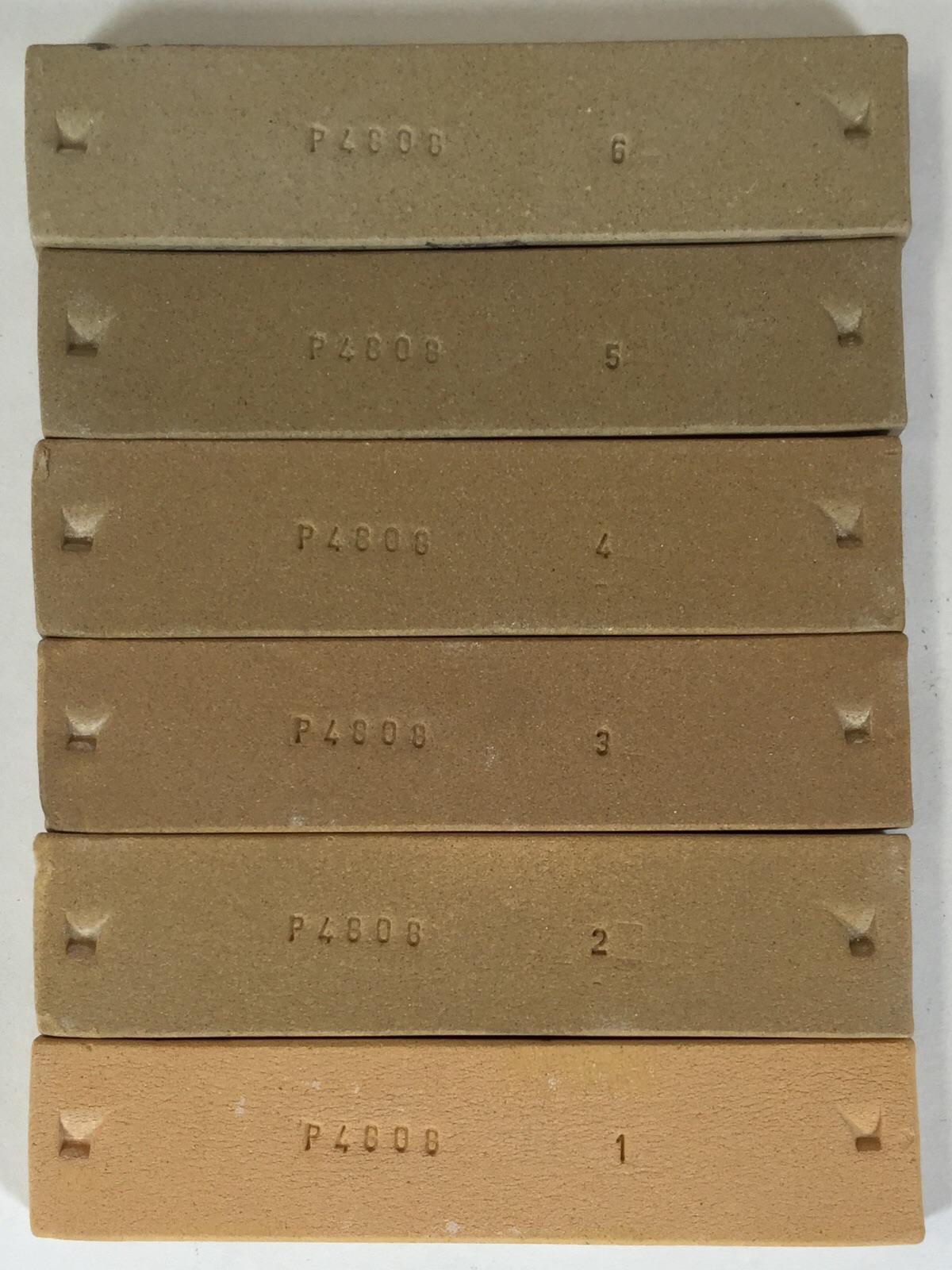

P4808 45D fired bars
Alternate Code Number:1680
Testdata
SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | RDIA | DSHR | FSHR | ABS | |
| 11 | 93.50 | 90.18 | 34.93 | 38.93 | 11 | 41.5 | 6.5% | 3.6% | 11.5% |
| 10 | 93.42 | 90.69 | 36.17 | 40.09 | 10 | 38.25 | 6.6% | 2.9% | 10.8% |
| 9 | 93.69 | 89.97 | 35.12 | 38.41 | 9 | 35 | 6.3% | 4.0% | 9.4% |
| 7 | 93.65 | 90.30 | 37.51 | 41.78 | 8.0~ | 31.25 | 6.3% | 3.6% | 11.4% |
| 8 | 93.63 | 88.97 | 37.26 | 37.29 | 8 | 31.75 | 6.4% | 5.0% | 0.1% |
| 6 | 93.66 | 88.00 | 38.54 | 38.57 | 6.7 | 28.5 | 6.3% | 6.0% | 0.1% |
| 5 | 93.70 | 86.27 | 36.34 | 36.37 | 5.0 | 21.5 | 6.3% | 7.9% | 0.1% |
| 4 | 93.69 | 86.38 | 37.08 | 37.17 | 4.0 | 16.25 | 6.3% | 7.8% | 0.2% |
| 3 | 93.58 | 86.37 | 35.60 | 35.72 | 3.0 | 15.0 | 6.4% | 7.7% | 0.3% |
| 2 | 93.39 | 86.38 | 36.21 | 36.73 | 2.8 | 13 | 6.6% | 7.5% | 1.4% |
| 1 | 93.27 | 86.79 | 35.51 | 36.66 | 1.4 | N/A | 6.7% | 6.9% | 3.2% |
| 12 | 93.36 | 6.6% |
SOLU - Soluble Salts
| DRY | FIRE | |
| 1 | MED | LIGHT |
DFAC - Drying Factor
| DFAC | SOLD | |
| 1 | C140+ | LITE+ |
CLWC - Clay Water Content - Powder, Plastic
| WPOW | PUGW | PUGD | POW% | PUG% | |
| 1 | 2.0 | 47.69 | 36.12 | 24.3% |
SIEV - Sieve Analysis 35-325 Wet
| TOT | 35M | 48M | 65M | 100M | 150M | 200M | 325M | |
| 1 | 100 | TR. | TR. | TR. | .12 | 6.21 | 10.57 | 6.42 |
XML (to paste into Insight)
Born: 2004-12-03, Modified: 2023-01-06 12:56:32
98 BGP RETEST
|
Code # P4738A |
Location BOX50 |
Notes
*Retest of the P4738 98 BGP run to confirm test results and compare alongside L3558 Scott clay which we are trying to find a suitable substitute for.
Clay at 24% moisture content was slightly stiff for making bars (a very high moisture content considering how stiff the clay feels).
A highly plastic clay (with high drying shrinkage; bars are warped and poor drying performance). See photo of dried bars and DFAC. Soluble salts are low.
Cone 6 bar is melting (although not bloating).
Cone 4 bar has begun to deform and has a shiny appearance but no indications of bloating either. A very stable clay when over fired!
Fired bars cone 06-2 show a classic terra cotta color progression.
Pictures

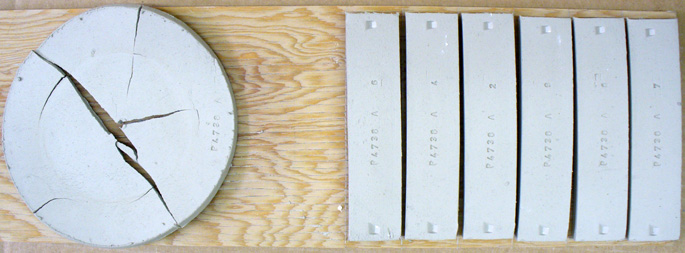

P4738A 98 BGP BLUE GREY PLASTIC RETEST DFAC, bars

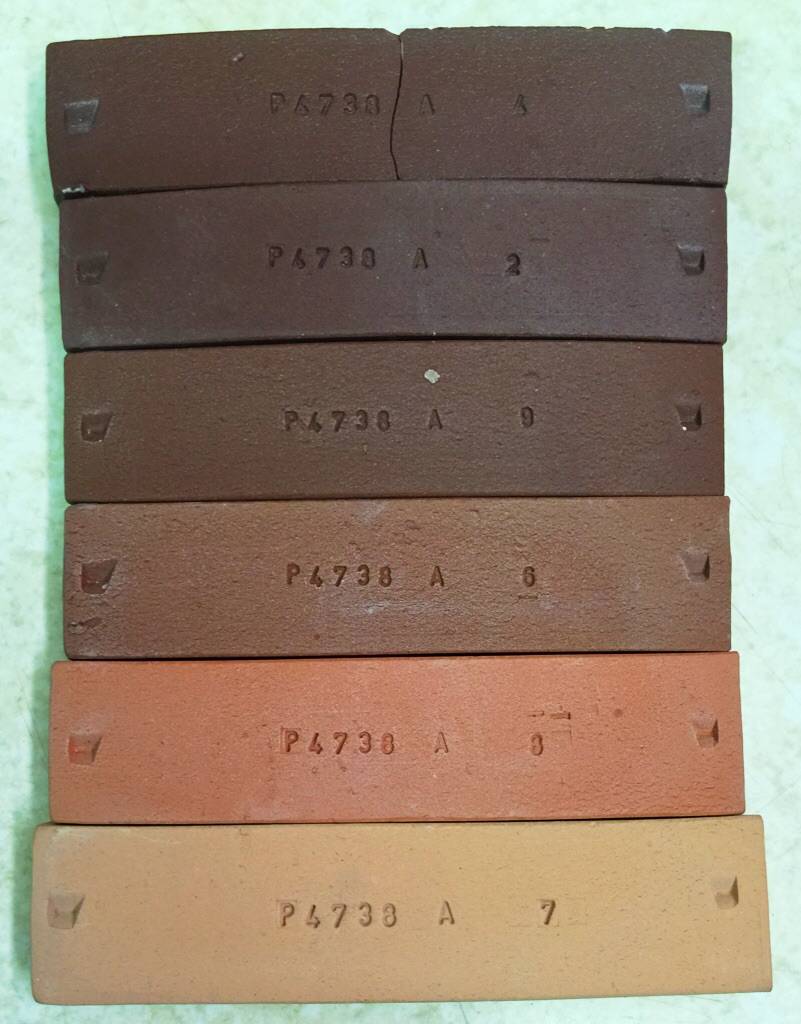

98 BGP Fired Bars
Testdata
SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | RDIA | DSHR | FSHR | ABS | |
| 4 | 92.33 | 89.10 | 36.34 | 36.34 | 4.0 | 15.5 | 7.7% | 3.5% | 0.0% |
| 2 | 92.42 | 86.90 | 35.57 | 35.58 | 2.0 | 11.0 | 7.6% | 6.0% | 0.0% |
| 9 | 92.52 | 85.58 | 35.36 | 35.36 | -2.0 | 6.5 | 7.5% | 7.5% | 0.0% |
| 6 | 92.52 | 86.00 | 36.35 | 36.50 | -3.0 | N/A | 7.5% | 7.0% | 0.4% |
| 8 | 92.54 | 88.02 | 35.55 | 37.14 | -4.0 | 2.0 | 7.5% | 4.9% | 4.5% |
| 7 | 92.80 | 92.28 | 36.75 | 41.29 | -6.0 | 7.2% | 0.6% | 12.4% |
SOLU - Soluble Salts
| FIRE | |
| 1 | MEDIUM |
DFAC - Drying Factor
| DFAC | SOLD | |
| 1 | D662 | LITE |
CLWC - Clay Water Content - Powder, Plastic
| PUGW | PUGD | POW% | PUG% | |
| 1 | 23.10 | 17.55 | 24.0% |
SIEV - Sieve Analysis 35-325 Wet
| TOT | 35M | 48M | 65M | 100M | 150M | 200M | |
| 1 | 100 | NIL | TR. | .11 | .39 | .87 | 3.42 |
XML (to paste into Insight)
Born: 2010-08-25, Modified: 2017-10-16 12:09:16
BGP Low Stoneware Body
|
Code # L3977 |
| Materials | Amt | Units | |
|---|---|---|---|
| *BGP | 1.000 | BGPBK | 45.14% |
| *M2 | 1.000 | M2BKT | 54.65% |
| Barium | 7.000 | LB | 0.21% |
Total:1,546,175.20 (R)
Notes
*Low fire red body made from 50:50 BGP (Blue Grey Plastic) and M2. Throwing is very good.
Fired bars shows its color and maturity from cone 04 to 1.5.
Pictures

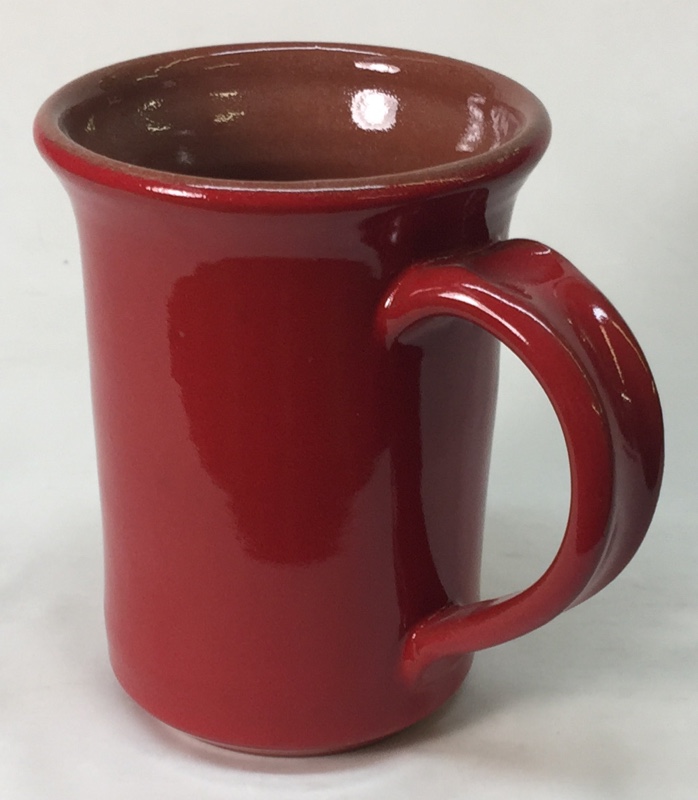

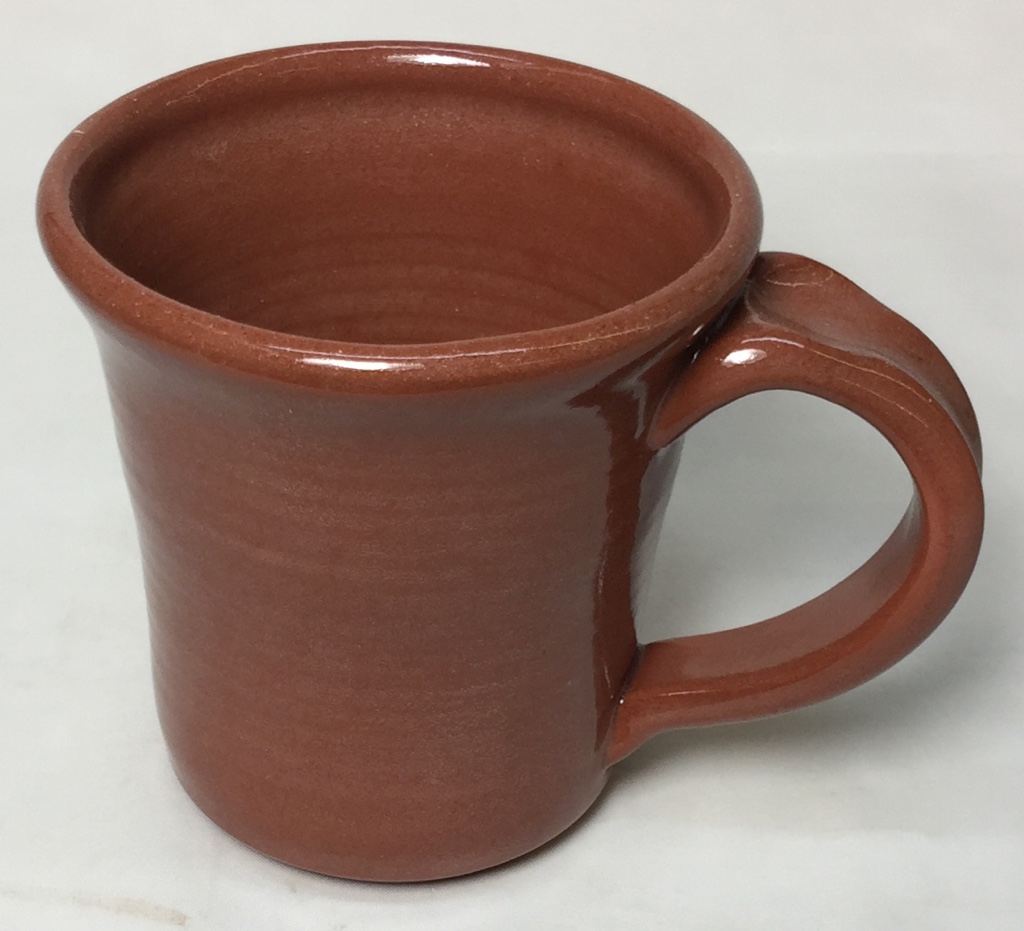

BGP mug with G2931K glaze at cone 03

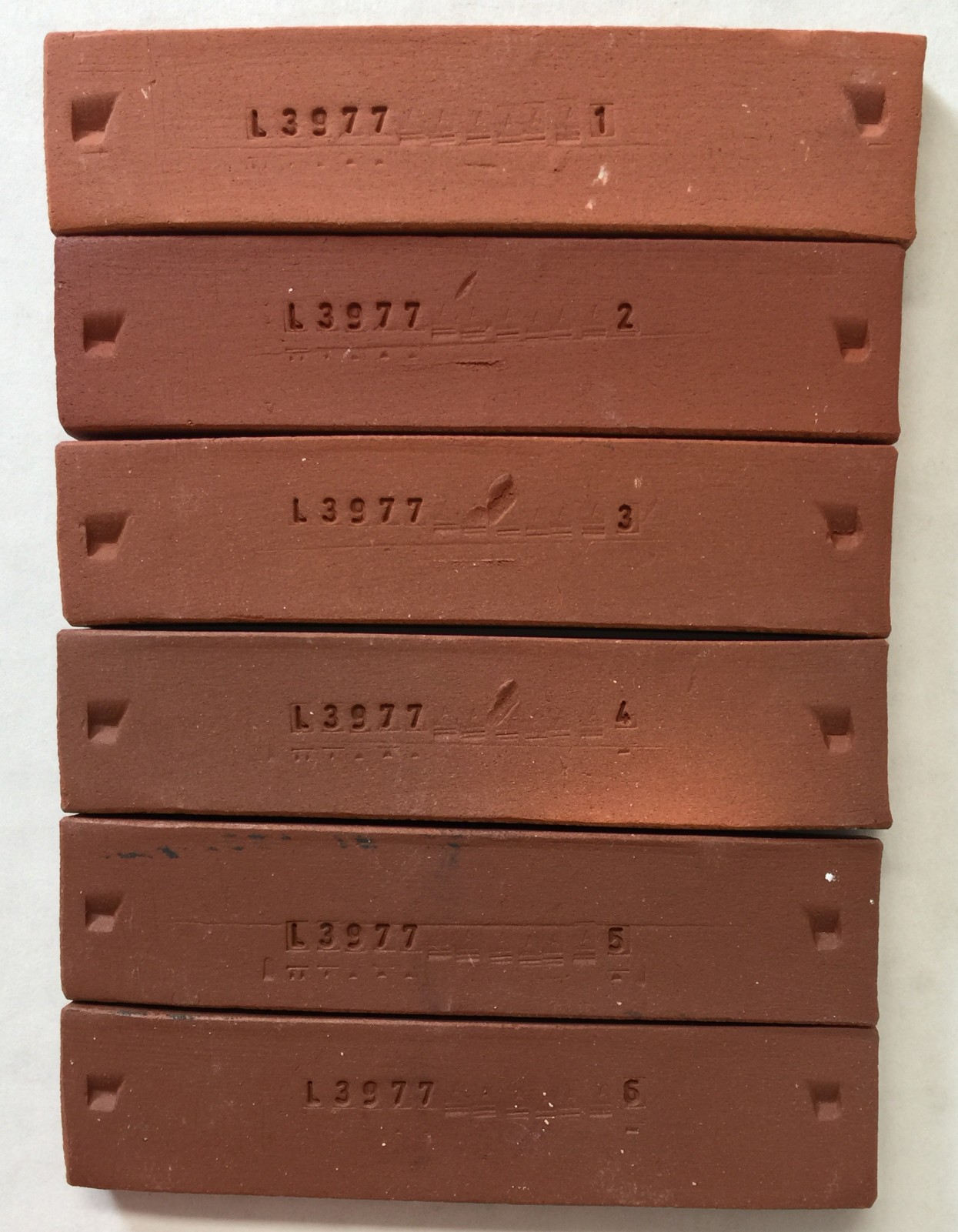

L3977 BGP bars
G2931K red on BGP red.
Glazed surface is defect free. Fit is perfect.
Testdata
SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | DSHR | FSHR | ABS | |
| 6 | 91.93 | 85.53 | 38.12 | 38.2 | 1.5 | 8.1% | 7.0% | 0.2% |
| 5 | 91.74 | 85.54 | 39.57 | 39.63 | 1.0 | 8.3% | 6.8% | 0.2% |
| 4 | 91.67 | 86 | 38.59 | 39.4 | -1.3 | 8.3% | 6.2% | 2.1% |
| 3 | 91.52 | 86.48 | 36.79 | 37.68 | -2.0 | 8.5% | 5.5% | 2.4% |
| 2 | 91.71 | 86.81 | 37.11 | 38.18 | -3.0 | 8.3% | 5.3% | 2.9% |
| 1 | 91.8 | 88.83 | 37.9 | 40.09 | -4.2 | 8.2% | 3.2% | 5.8% |
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="BGP Low Stoneware Body" id="112790" key="BqS1pAz7" date="2017-10-16" codenum="L3977"> <recipelines> <recipeline material="BGP" amount="1.000" unitabbr="BGPBK"/> <recipeline material="M2" amount="1.000" unitabbr="M2BKT"/> <recipeline material="Barium" amount="7.000" unitabbr="LB"/> </recipelines> </recipe> </recipes>
Born: 2017-05-24, Modified: 2017-10-16 11:55:42
