Custer Feldspar Crackle Cone 10
|
Code # G4613 |
| Materials | Amt |
|---|---|
| Custer Feldspar (post-2000) | 70.000 |
| Whiting | 20.000 |
| EPK | 10.000 |
Total:100.00
Auto Unity Formula
|
Si:Al: 6.5:1 8.1 (Molar:7.7) 10.7 Cost 0.33 per kg |
Notes
Multiple issues:
-Custer
-Crawling
-Bubbling
-Settling
-Thickness control

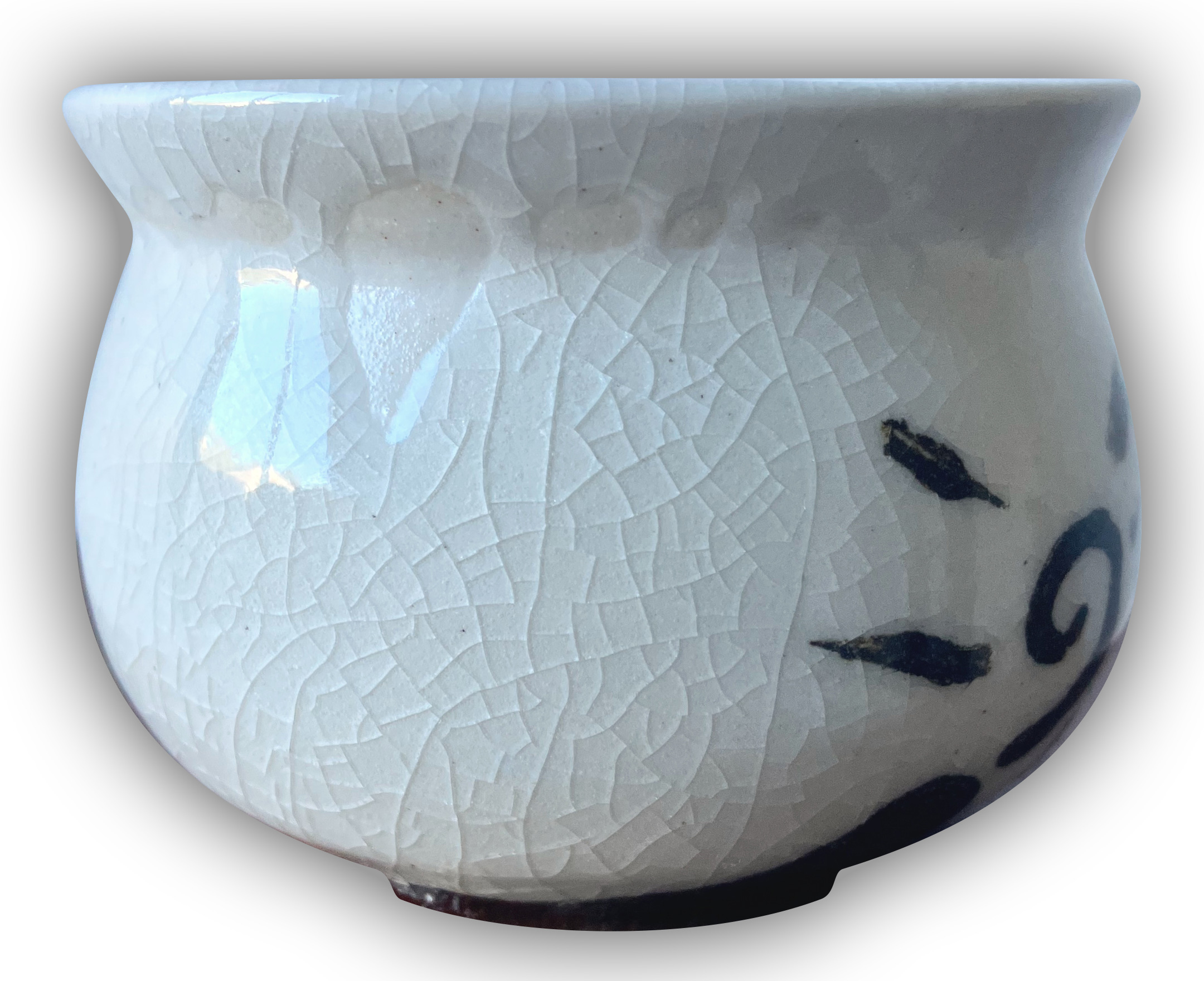

Pictures
Untitled
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Custer Feldspar Crackle Cone 10" id="295210" key="6vtwSQ91" date="2026-09-18" codenum="G4613"> <recipelines> <recipeline material="Custer Feldspar (post-2000)" amount="70.000"/> <recipeline material="Whiting" amount="20.000"/> <recipeline material="EPK" amount="10.000"/> </recipelines> </recipe> </recipes>
Born: 2026-09-17, Modified: 2026-09-18 17:32:30
Minspar Crackle Cone 10
|
Code # G4613A |
| Materials | Amt | |
|---|---|---|
| Minspar 200 | 48.000 | 50.00% |
| Wollastonite | 21.000 | 21.88% |
| EPK | 15.000 | 15.63% |
| Ferro Frit 3110 | 12.000 | 12.50% |
Total:96.00
Auto Unity Formula
|
Si:Al: 6.8:1 8.0 (Molar:7.9) 2.5 Cost 0.18 per kg |
Notes
Source KNaO from Minspar instead of Custer.
Wolly is a better source of CaO.
More KNaO to raise COE (and enable thinner application).
Add CMC for brushing.
This has lower LOI (to remove the bubbles).
Supplying KNaO from a mix of Minspar and Frit 3110 enable tuning the amount of kaolin
The Si:Al ratio should be raised, perhaps by switching to ball clay (but that could make the glass amber).
Pictures
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Minspar Crackle Cone 10" id="295340" key="xZi5RGBZ" date="2026-09-18" codenum="G4613A"> <recipelines> <recipeline material="Minspar 200" amount="48.000"/> <recipeline material="Wollastonite" amount="21.000"/> <recipeline material="EPK" amount="15.000"/> <recipeline material="Ferro Frit 3110" amount="12.000"/> </recipelines> </recipe> </recipes>
Born: 2026-09-18, Modified: 2026-09-18 17:34:43
