Project to replace H550/H450 with a better product

Share from Insight-live.com (Lab Documentation and Calculation System) by Digitalfire. https://digitalfire.com

3D:A2 Body Base H550 Blend

Total:100.30

Notes

This is part of development of a new recipe for Plainsman H550. It is being made from A2 ball clay and 3D (the main material in Ravenscrag Slip). This produces a much smoother and more plastic body of better maturity. Fired color is very similar.

H450 is smoother and more plastic than H550, but people have not been buying it because it costs more. This one is as good or better than H450, but will cost the same or less than H550.

This has a unique rubbery plasticity, thus there is less liklihood of over extending a piece during throwing, there is no tendency to split when pulling handles and it lubricates with less slip and water than normally necessary.

Pictures

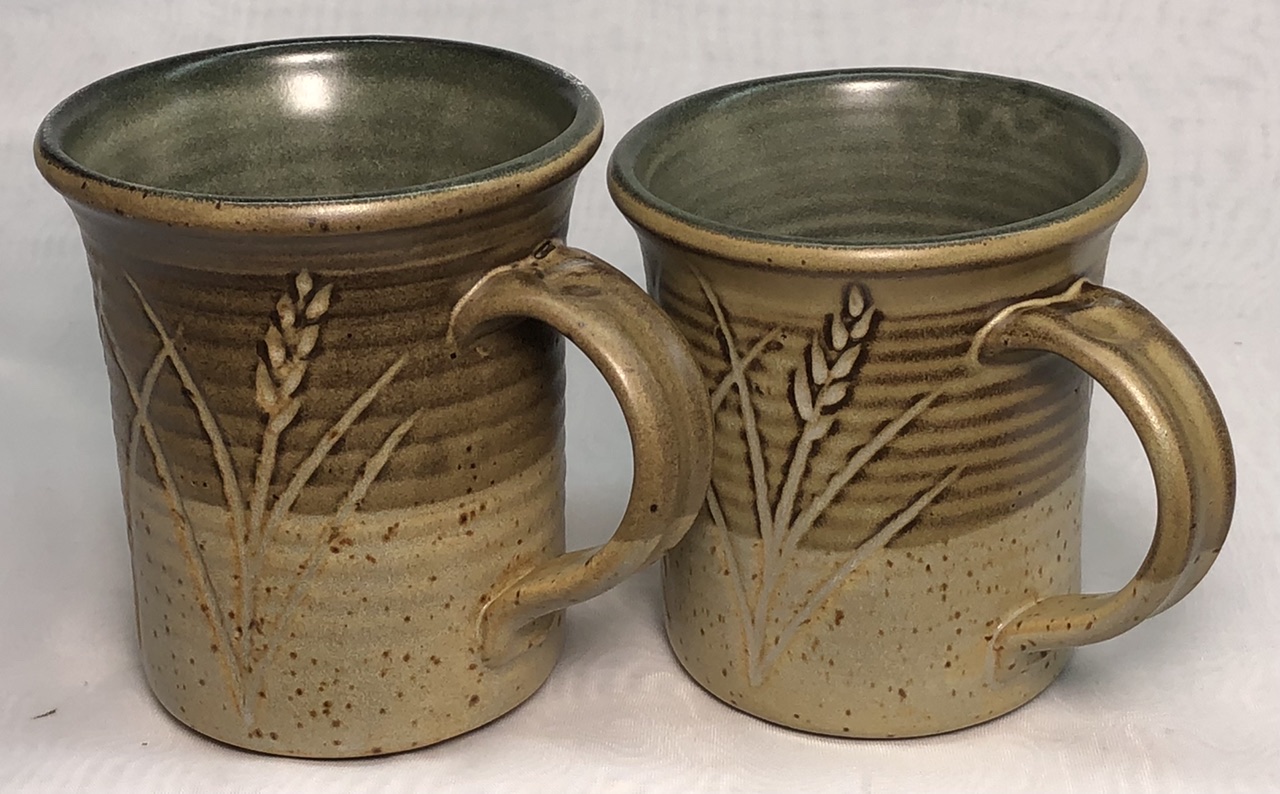

L4453C Mugs

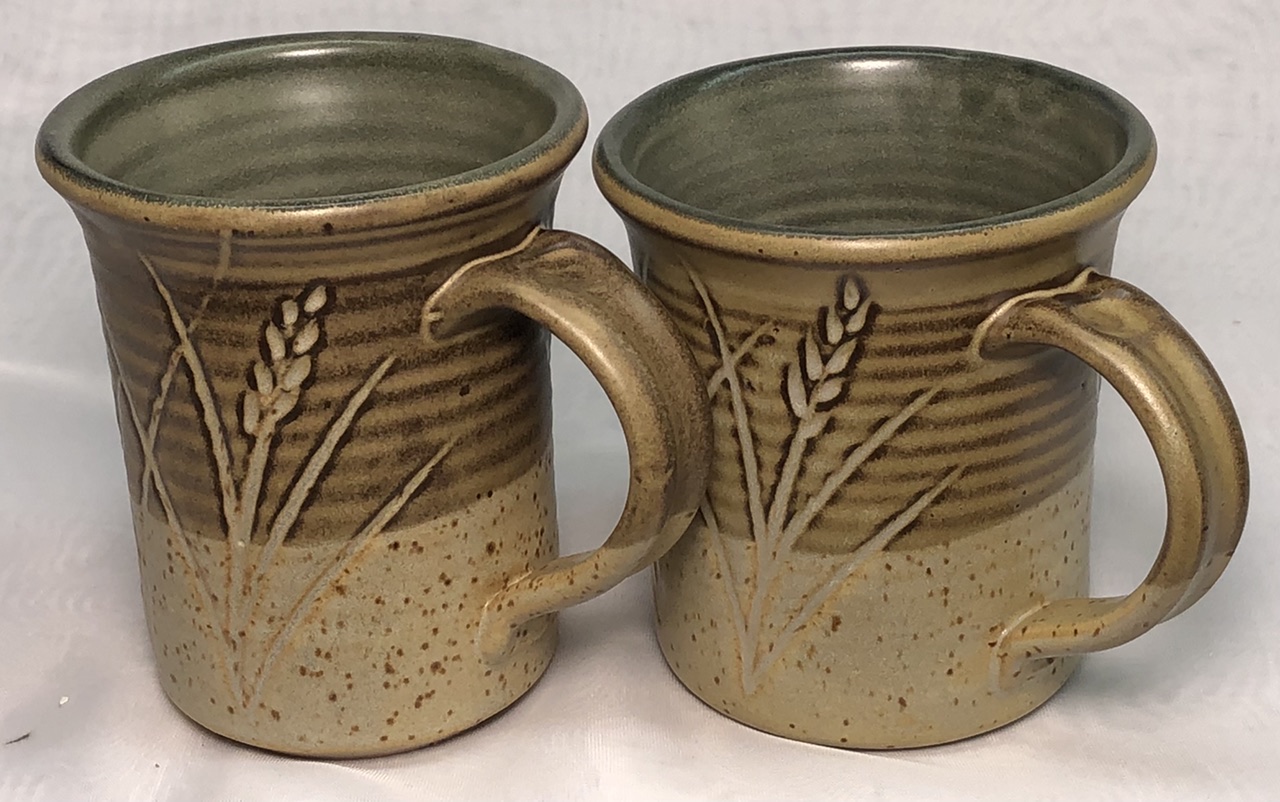

H450 vs L4453C mugs

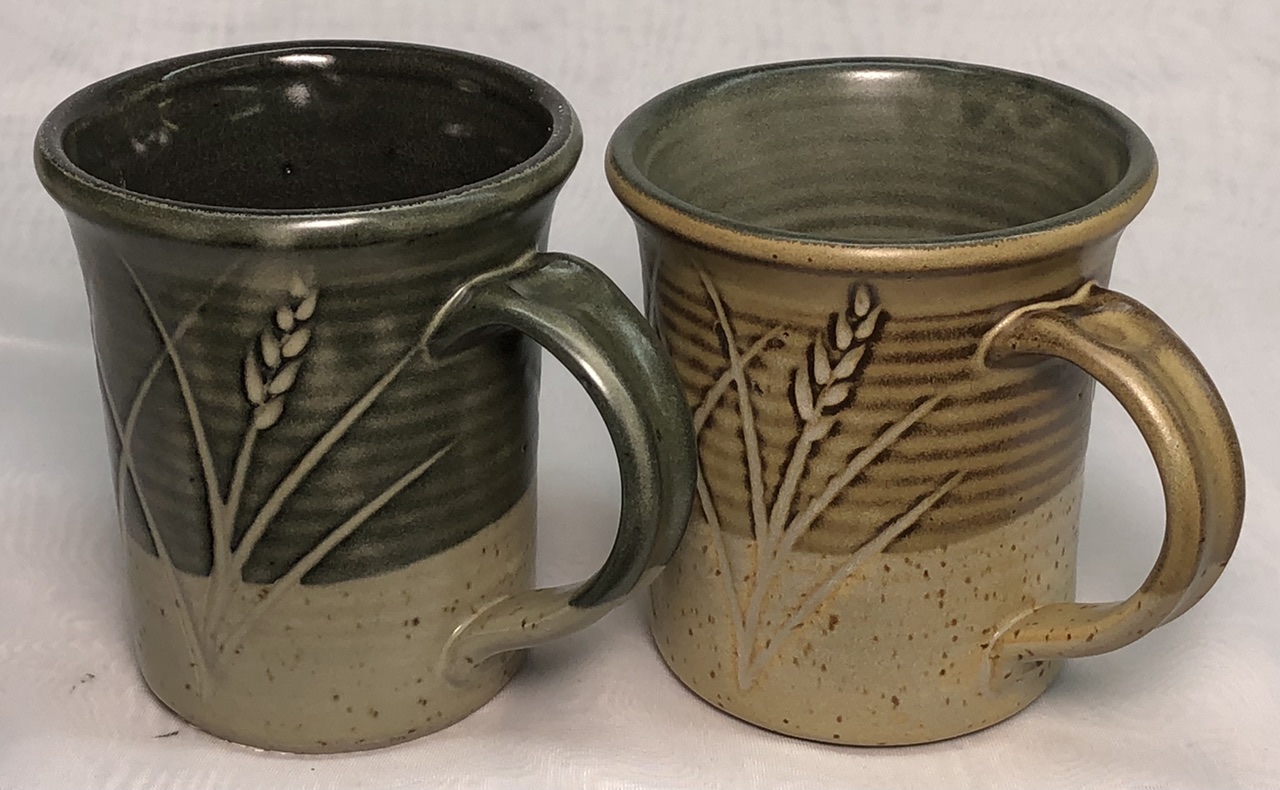

H550 vs L4453C mugs

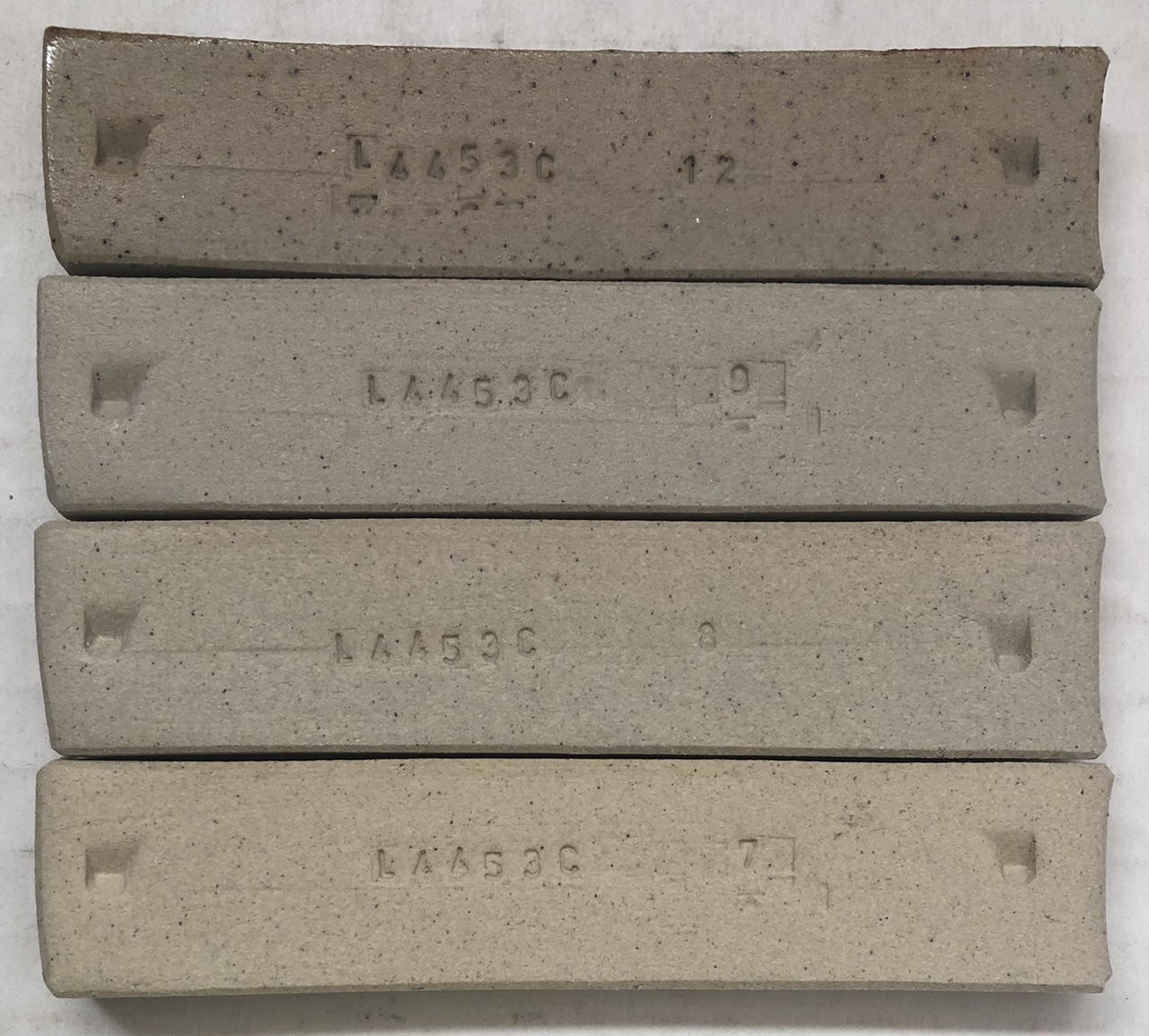

L4453C fired bars

Cone 10 oxidation bar, not shown, was not bloating.

Testdata

SHAB - Shrinkage/Absorption

	DLEN	FLEN	FWT	BWT	CONE	DSHR	FSHR	ABS
12	93.39	87.39	42.32	42.58	10.5R	6.6%	6.4%	0.6%
10	93.26	87.43	43.33	43.76	10.0	6.7%	6.3%	1.0%
9	93.17	87.57	43	43.74	9.0	6.8%	6.0%	1.7%
8	93.19	87.98	43.32	44.35	8.0	6.8%	5.6%	2.4%
7	93.1	88.2	42.2	43.61	7.0	6.9%	5.3%	3.3%
6	93.11	88.60	42.19	44.08	6.0	6.9%	4.8%	4.5%
5	93	89.11	40.59	43.11	5.0	7.0%	4.2%	6.2%
4	92.89	89.52	39.10	42.2	4.0	7.1%	3.6%	7.9%

XML (to paste into Insight)

<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="3D:A2 Body Base H550 Blend" id="202963" key="k1ggZ532" date="2022-06-02" codenum="L4453C"> <recipelines> <recipeline material="A2" amount="40.000" tolerance=""/> <recipeline material="Plainsman 3D 42 mesh" amount="60.000" tolerance=""/> <recipeline material="Barium" amount="0.300" tolerance=""/> </recipelines> </recipe> </recipes>

Born: 2018-12-11, Modified: 2022-06-02 11:53:14
