Cimtalc 15 Talc lab test
|
Code # L4158 |
| Materials | Amt | Units | |
|---|---|---|---|
| M23 Ball Clay | 44.000 | 50BG | 27.61% |
| *3D | 2.000 | 3DBKT | 47.92% |
| *Cimbar Cimtalc 15 Talc | 31.000 | 50BG | 19.45% |
| Bentonite | 8.000 | 50BG | 5.02% |
Total:3,614,406.80 (R)
Notes
L4115K2 lab recipe for L211 using "Cimbar" Cimtalc 15 talc received from Quadra Chemicals Ltd. We are trying to find a replacement for Natural Minerals C-98 talc from Texas.
Took 2500 gms. water to slip up 2000 gms. powder.
Pictures

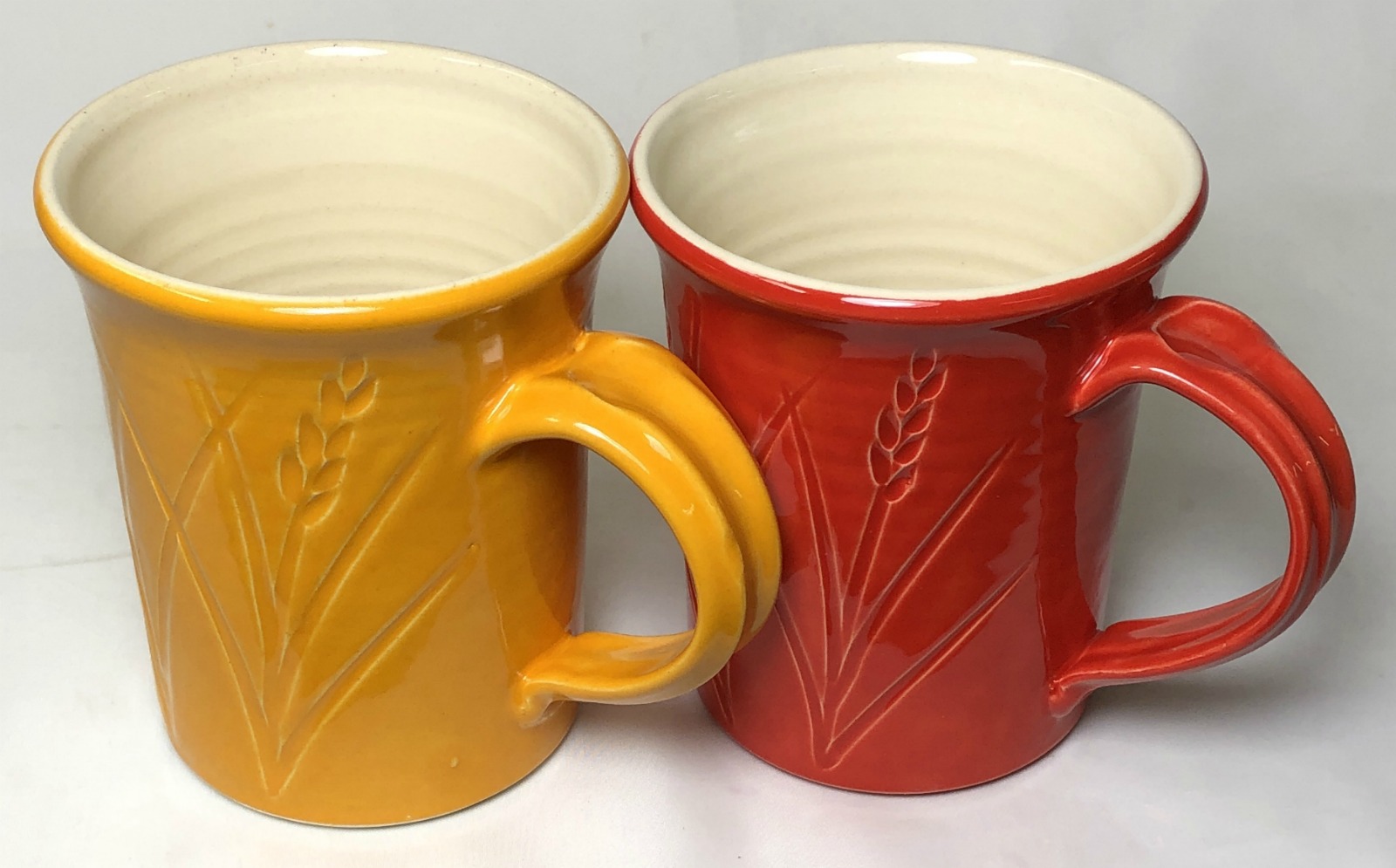

L4158 vs. K3 (Natural Talc)
Left Cimtalc 15, Right: Natural C-98 talc
Color very close.
Silverline, C-98, CimTalcs in the same body
Fired to cone 04.
The clay is L4115K2, a ball clay, Plainsman 3D and talc recipe. Talc is only 20%.

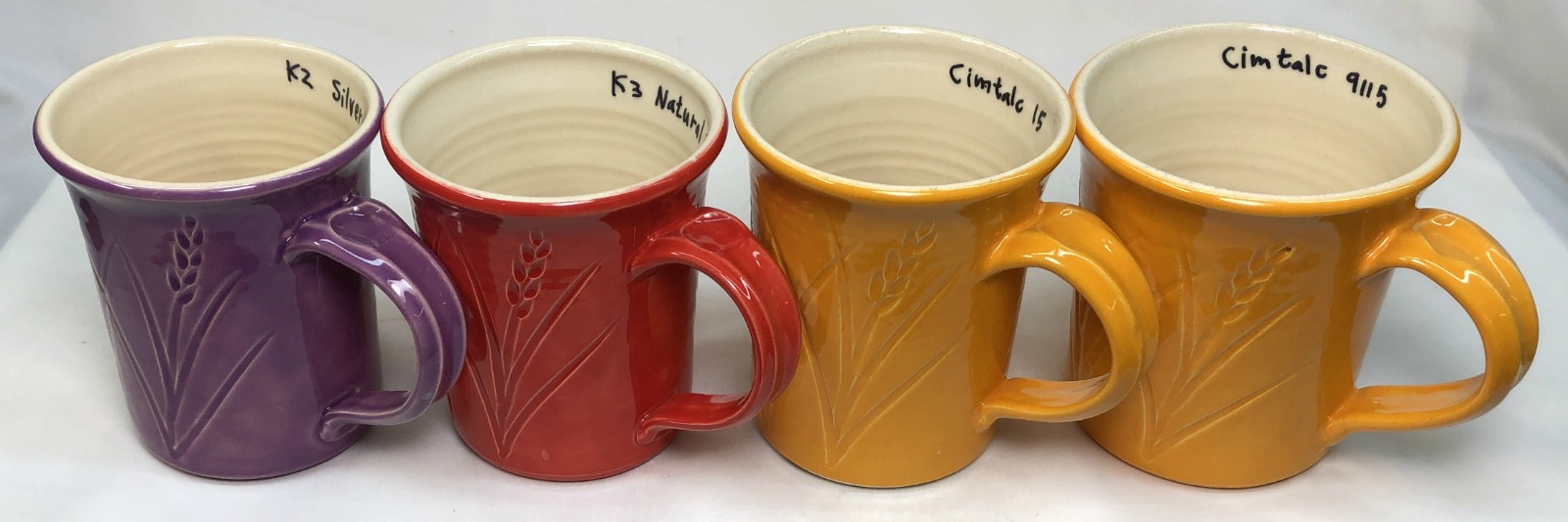

Each mug uses a different talc (left to right):
Silverline, Natural Talc, Cimtalc 15, Cimtalc 9115
Transparent glaze inside, spectrum brights on the outsides.

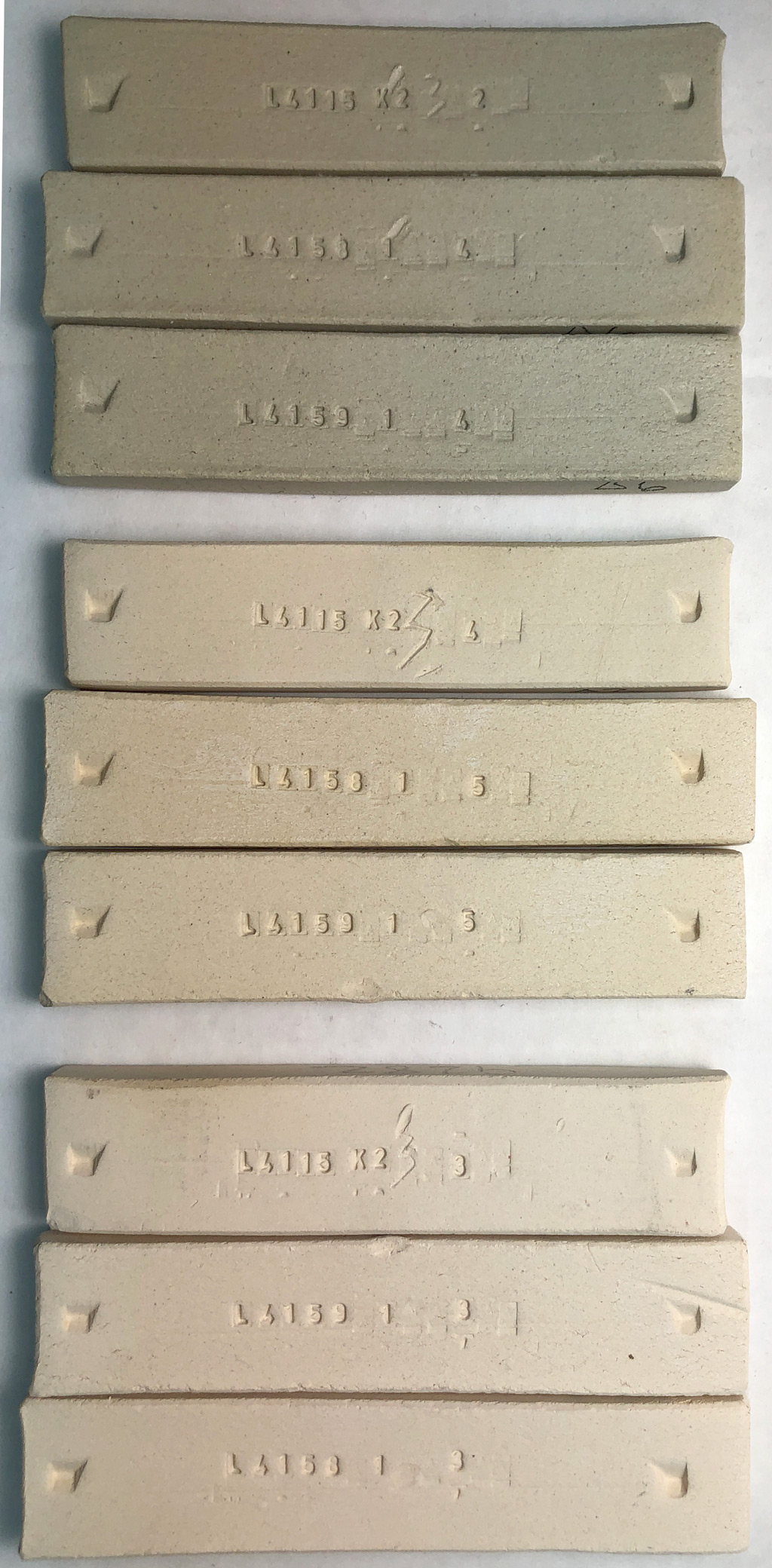

L4158 vs L4159 fired bars

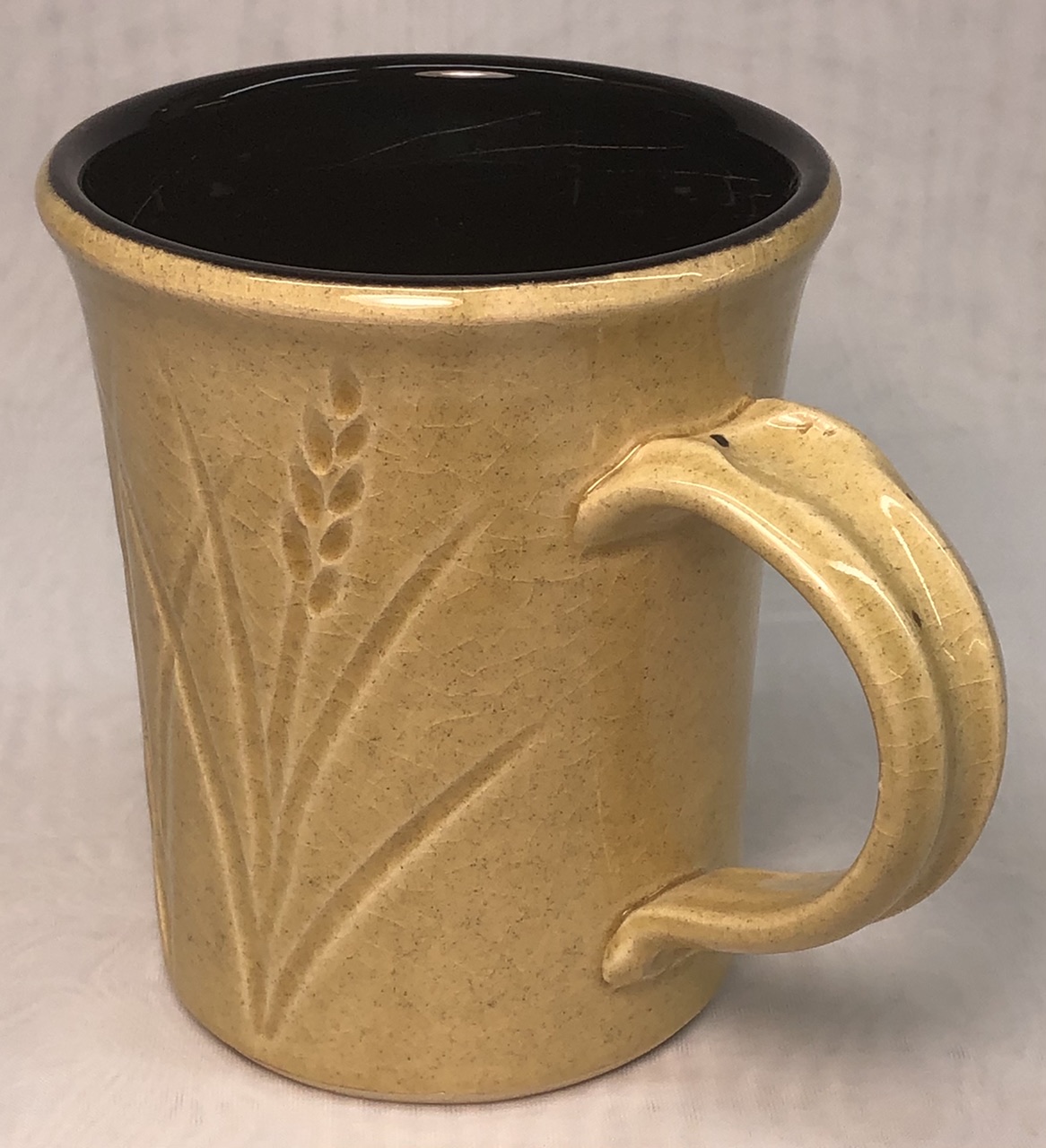

L4158 Crazed badly after 6 months
Testdata
SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | DSHR | FSHR | ABS | |
| 4 | 93.78 | 88.45 | 38.94 | 39.75 | 6.0 | 6.2% | 5.7% | 2.1% |
| 6 | 93.7 | 88.83 | 37.13 | 3.9 | 6.3% | 5.2% | ||
| 5 | 93.77 | 90.18 | 38.47 | 41.41 | 2.0 | 6.2% | 3.8% | 7.6% |
| 3 | 93.52 | 90.8 | 37.45 | -2.1 | 6.5% | 2.9% | ||
| 2 | 93.44 | 91.73 | 39.96 | 45.23 | -4.0 | 6.6% | 1.8% | 13.2% |
| 1 | 93.37 | 92.56 | 39.11 | 45.31 | -6.0 | 6.6% | 0.9% | 15.9% |
LDW - LOI/Density/Water Content
| WWGT | DWGT | FWGT | H2O | LOI | DENS | |
| 1 | 26.89 | 21.10 | 19.48 | 21.5% | 7.7% |
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Cimtalc 15 Talc lab test" id="152539" key="i1chnmH1" date="2021-03-26" codenum="L4158"> <recipelines> <recipeline material="M23 Ball Clay" amount="44.000" tolerance="" unitabbr="50BG"/> <recipeline material="3D" amount="2.000" tolerance="" unitabbr="3DBKT"/> <recipeline material="Cimbar Cimtalc 15 Talc" amount="31.000" tolerance="" unitabbr="50BG"/> <recipeline material="Bentonite" amount="8.000" tolerance="" unitabbr="50BG"/> </recipelines> </recipe> </recipes>
Born: 2018-12-11, Modified: 2021-03-26 10:56:58
Cimtuff 9115 Talc lab test
|
Code # L4159 |
| Materials | Amt | Units | |
|---|---|---|---|
| M23 Ball Clay | 44.000 | 50BG | 27.61% |
| *3D | 2.000 | 3DBKT | 47.92% |
| *Cimbar Cimtuff 9115 Talc | 31.000 | 50BG | 19.45% |
| Bentonite | 8.000 | 50BG | 5.02% |
Total:3,614,406.80 (R)
Notes
L4115K2 lab recipe for L211 using "Cimbar" Cimtuff 9115 talc received from Quadra Chemicals Ltd.
When compared to Cimtalc 15 talc (L4158), 9115 is whiter in the raw state.
Fired bars, especially at cone 02, prefer this one also (for whiteness).
There is no difference in fired color between this and natural talc in any test we did.
Took 2500 gms. water to slip up 2000 gms. powder.
These two talcs seem to create a less plastic body than Silverline and Natural. Notwithstanding that, the slip generated is extremely slippery and makes throwing very thin pieces possible.
Pictures

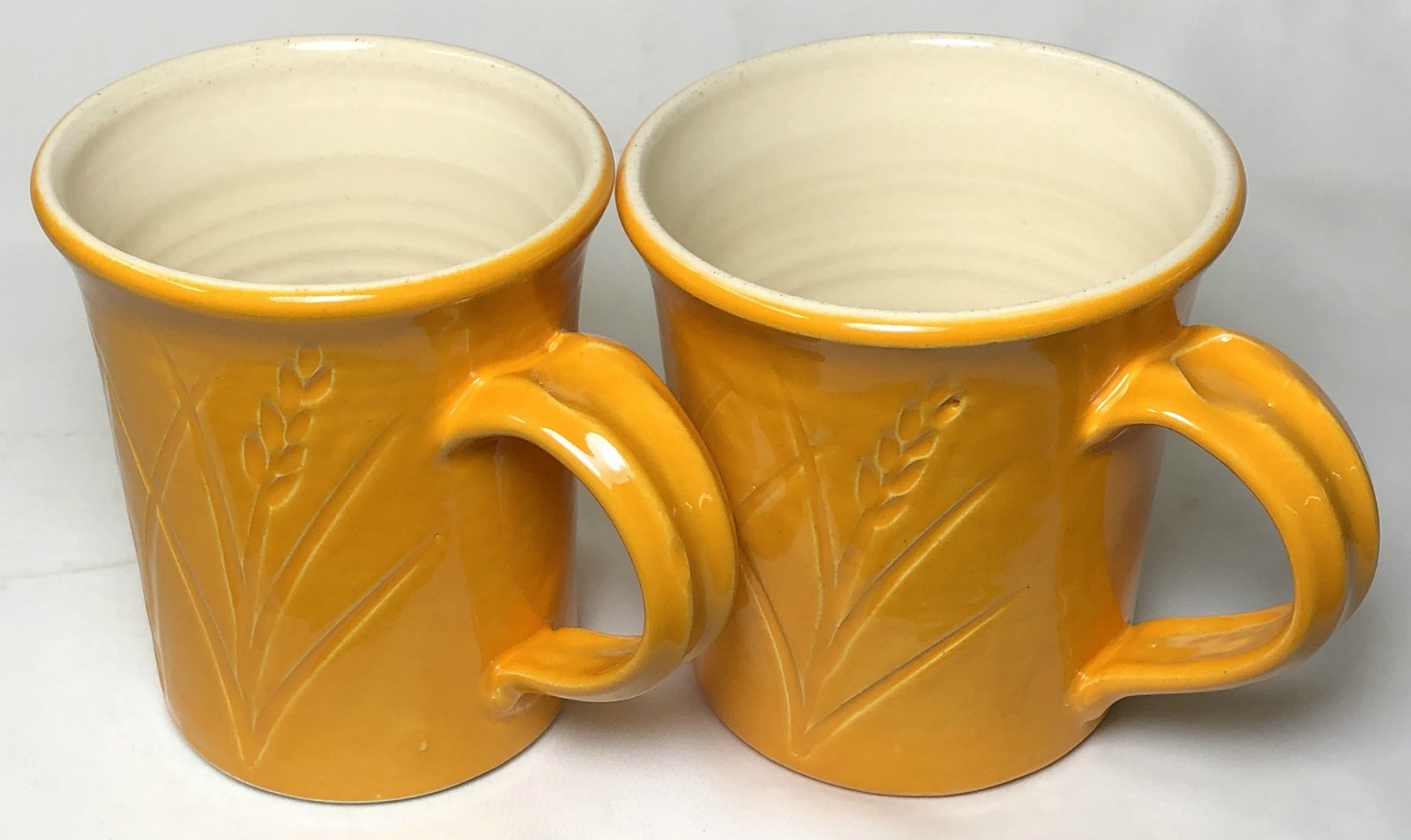

Cimtalc 15, 9115 on talc:ball clay body
Fired cone 04. Ball is 50:50 talc:ball clay.
L4158 left, L4159 right.
Silverline, C-98, CimTalcs in the same body
Fired to cone 04.
The clay is L4115K2, a ball clay, Plainsman 3D and talc recipe. Talc is only 20%.
Each mug uses a different talc (left to right):
Silverline, Natural Talc, Cimtalc 15, Cimtalc 9115
Transparent glaze inside, spectrum brights on the outsides.
Untitled
Testdata
SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | DSHR | FSHR | ABS | |
| 4 | 93.56 | 88.22 | 35.95 | 36.8 | 6.0 | 6.4% | 5.7% | 2.4% |
| 6 | 93.43 | 88.87 | 37.24 | 39.3 | 3.9 | 6.6% | 4.9% | 5.5% |
| 7 | 93.26 | 88.57 | 37.75 | 39.52 | 3.9 | 6.7% | 5.0% | 4.7% |
| 5 | 93.48 | 90.09 | 36.15 | 2.0 | 6.5% | 3.6% | ||
| 3 | 93.37 | 90.86 | 35.6 | 39.67 | -2.1 | 6.6% | 2.7% | 11.4% |
| 2 | 93.31 | 91.69 | 36.2 | 41.1 | -4.0 | 6.7% | 1.7% | 13.5% |
| 1 | 93.45 | 92.58 | 37.28 | 43.21 | -6.0 | 6.6% | 0.9% | 15.9% |
LDW - LOI/Density/Water Content
| WWGT | DWGT | FWGT | H2O | LOI | DENS | |
| 1 | 26.05 | 20.34 | 18.87 | 21.9% | 7.2% |
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Cimtuff 9115 Talc lab test" id="152542" key="Ps9KNjNe" date="2021-04-21" codenum="L4159"> <recipelines> <recipeline material="M23 Ball Clay" amount="44.000" tolerance="" unitabbr="50BG"/> <recipeline material="3D" amount="2.000" tolerance="" unitabbr="3DBKT"/> <recipeline material="Cimbar Cimtuff 9115 Talc" amount="31.000" tolerance="" unitabbr="50BG"/> <recipeline material="Bentonite" amount="8.000" tolerance="" unitabbr="50BG"/> </recipelines> </recipe> </recipes>
Born: 2018-12-11, Modified: 2021-04-21 12:29:03
