Crystal Ice - Cone 6 v1
|
Code # L3802F |
| Materials | Amt |
|---|---|
| New Zealand Kaolin | 35.000 |
| Silica | 35.000 |
| Nepheline Syenite | 30.000 |
| Additions | |
|---|---|
| VeeGum T | 4.000 |
Total:104.00
Notes
This adjusts the L3802E cone 10 Crystal Ice to mature at cone 6. The following changes were made:
Moved silica from 20 to 35.
NZK from 42 to 32
Nepheline from 34 to 29
Veegum to 4
The 4% Veegum produces high plasticity but also necessitates a lot of water to be able to slurry the material. The greatest benefit (best plastic, fewest drying cracks) are had when the plastic material is not too soft.
For the casting version, start with about 1% Veegum. If pieces crack during their time in the mold, increase the Veegum. If they cast too slow reduce it. If the glaze still crazes, increase silica to 40% and reduce the kaolin to 30 (this will mean that a little more Veegum will be needed). If more fired maturity is needed consider substituting 5% of the Nepheline for Frit 3110.
Pictures
Untitled
Typecodes
MAS-Master Ticket
Alternate Code Number:MPOLAR1
Testdata

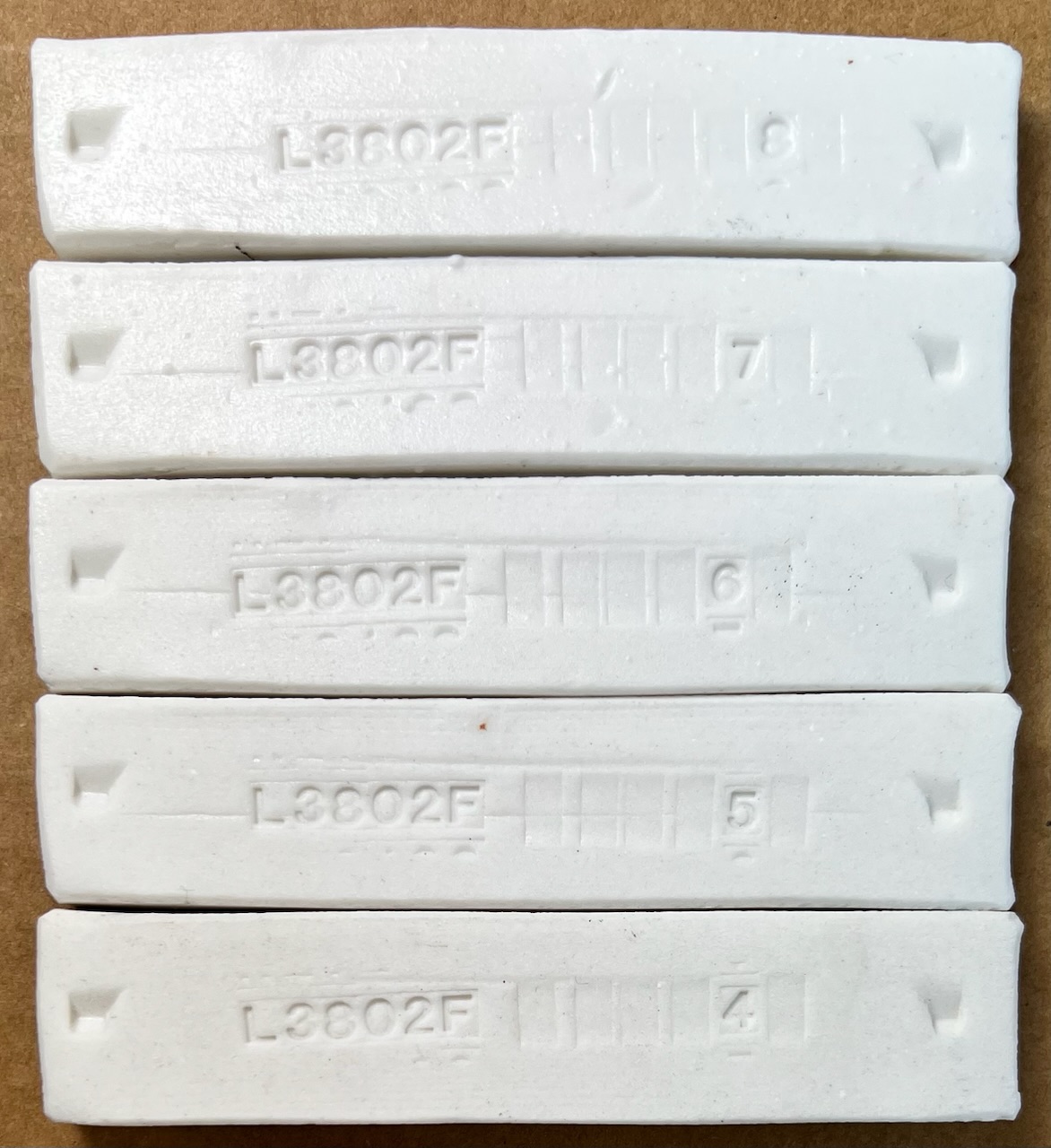

SHAB - Shrinkage/Absorption
| DLEN | FLEN | FWT | BWT | CONE | DSHR | FSHR | ABS | |
| 8 | 92.9 | 85.87 | 38.28 | 38.42 | 8.0 | 7.1% | 7.6% | 0.4% |
| 7 | 92.7 | 85.26 | 38.1 | 38.26 | 6.7 | 7.3% | 8.0% | 0.4% |
| 6 | 92.6 | 84.86 | 38.14 | 38.31 | 6.0 | 7.4% | 8.4% | 0.4% |
| 5 | 92.7 | 85.35 | 37.19 | 37.5 | 5.0 | 7.3% | 7.9% | 0.8% |
| 4 | 93 | 86.33 | 36.72 | 37.18 | 4.0 | 7.0% | 7.2% | 1.3% |
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Crystal Ice - Cone 6 v1" id="227704" key="ysgj2bcS" date="2026-07-20" typecodes="MAS" codenum="L3802F" picturebasename=""> <recipelines> <recipeline material="New Zealand Kaolin" amount="35.000" tolerance=""/> <recipeline material="Silica" amount="35.000" tolerance=""/> <recipeline material="Nepheline Syenite" amount="30.000" tolerance=""/> <recipeline material="VeeGum T" amount="4.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2014-02-19, Modified: 2026-07-20 17:22:41
Bory1 Crystal Glaze for cone 6
|
Code # G3956A |
| Materials | Amt |
|---|---|
| Ferro Frit 3110 | 50.000 |
| Zinc Oxide | 25.000 |
| 45 Micron Silica (Silica) | 20.000 |
| Ferro Frit 3134 | 5.000 |
| Additions | |
|---|---|
| Titanium Dioxide | 4.000 |
| Cobalt Carbonate | 2.000 |
Total:106.00
Auto Unity Formula
|
Si:Al: 49.8:1 8.8 (Molar:8.6) 0.7 |
Notes
Brushing version made by blender mixing 340g powder, 440g water, 5g CMC, 6g Veegum. Paintability was very good. Drying is a little faster than normal so a little more CMC could be tolerated.
Used Plainsman Cone 6 Crystalline #1 schedule.
Pictures

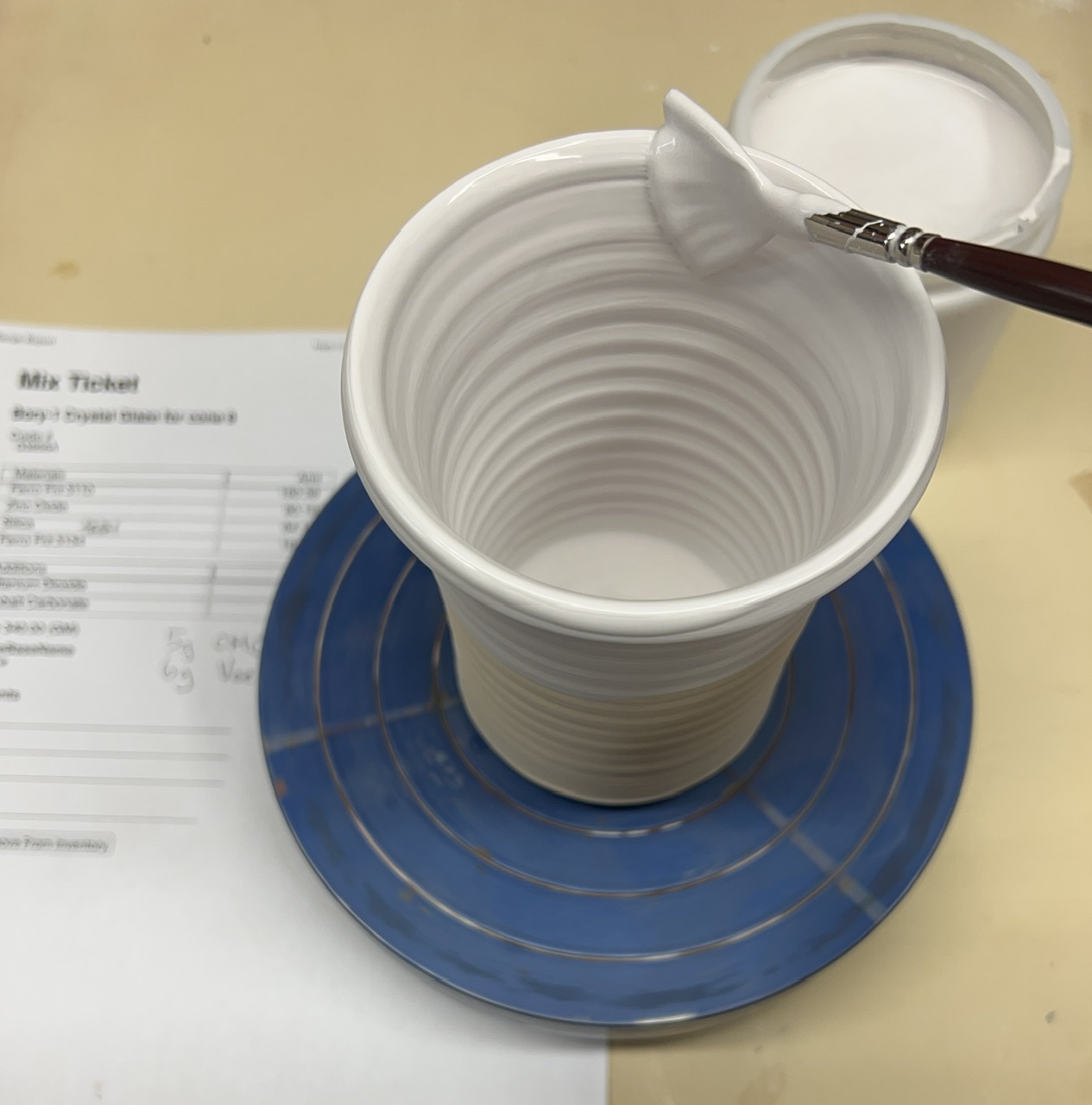

G3956A Bory-1 paintability very good
The Veegum is gelling to slurry so it is suspending well and not settling at all.

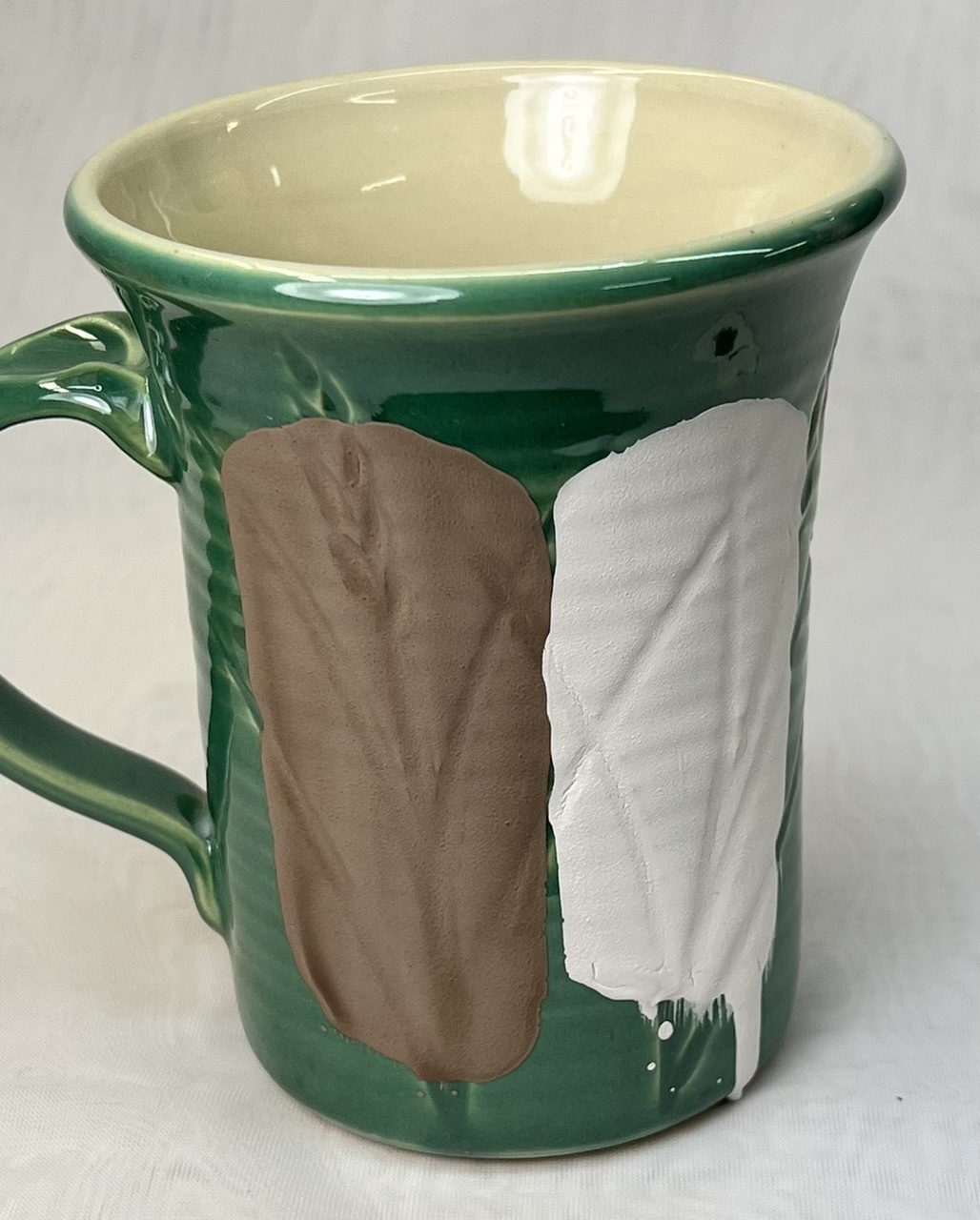

G3956A Bory1 running and drying test
Left is GA6-BB, it contains plenty of clay and thus gels and holds well when paint on a glass surface. G3956A, since it has no clay at all must rely entirely on the added VeeGum to gel it. It works amazingly well (although a run did form on this test). The surface is hard and crack-free.

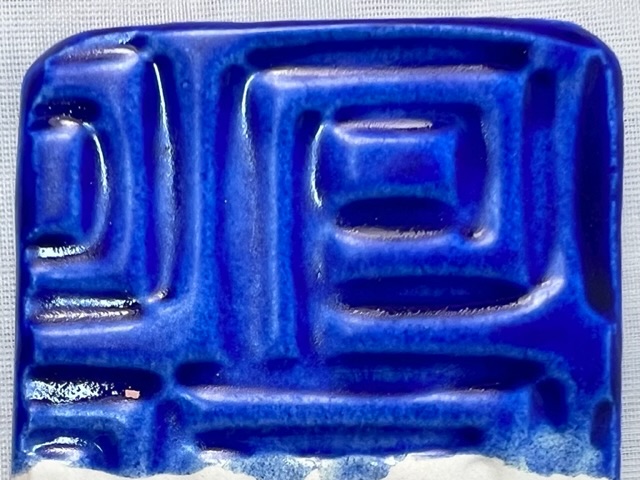

L3956A accidentally fired to cone 02

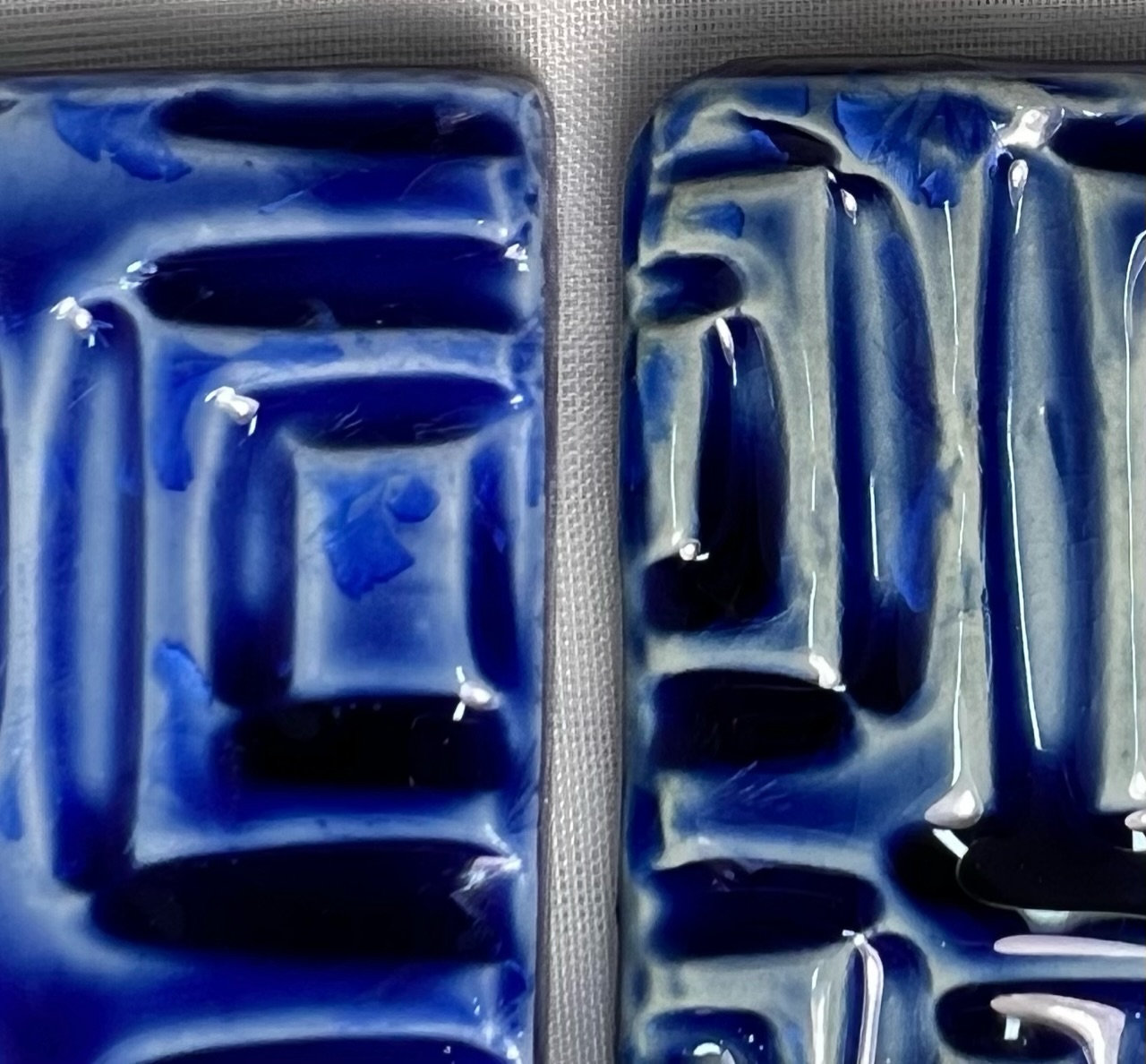

G3956A Bory1 Crystal on L3802F and M370
The L3802F gives much better color and crystal development (I think it was dipped rather than brushed).

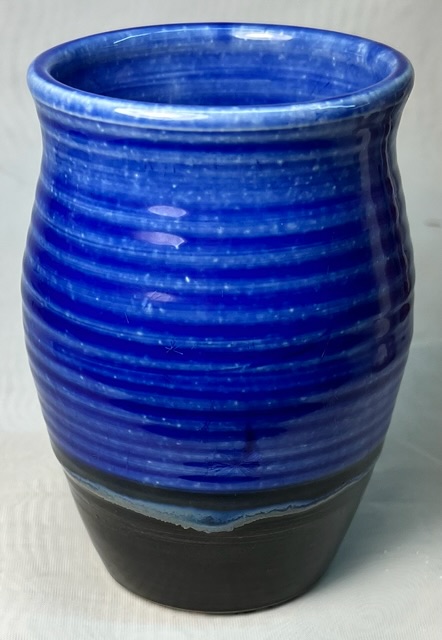

G3956A Bory1 Crystal on L3802F porcelain
No crazing and on tiny crystals, likely needs something to seed them better. Was applied by brushing.
XML (to paste into Insight)
<?xml version="1.0"?> <recipes version="1.0" encoding="UTF-8"> <recipe name="Bory1 Crystal Glaze for cone 6" id="227697" key="CRLsCquZ" date="2022-12-13" codenum="G3956A" picturebasename=""> <recipelines> <recipeline material="Ferro Frit 3110" amount="50.000" tolerance=""/> <recipeline material="Zinc Oxide" amount="25.000" tolerance=""/> <recipeline material="45 Micron Silica" lookup="Silica" amount="20.000" tolerance=""/> <recipeline material="Ferro Frit 3134" amount="5.000" tolerance=""/> <recipeline material="Titanium Dioxide" amount="4.000" added="true"/> <recipeline material="Cobalt Carbonate" amount="2.000" added="true"/> </recipelines> </recipe> </recipes>
Born: 2012-10-24, Modified: 2022-12-13 15:25:38
Firing Schedule Name
Cone 6 Crystalline Plainsman Clays
Based on G2902B
Degrees (Fahrenheit or Celcius)
F
Schedule Type
Rate
Start Time and Temperature
7:30 pm at 70F
Program
| Step | Degrees/Hr | Temperature Monitor |
Hold Time |
Accumulated hrs:min |
Time | Note |
|---|---|---|---|---|---|---|
| 1 | 100 | 250 | 60 | 2:48 | 10:18 pm | |
| 2 | 750 | 2200 | 5 | 5:24 | 12:54 am | |
| 3 | 750 | 1950 | 60 | 6:44 | 2:14 am |
Notes
Firing Schedule Name
Bory 1 Crystalline Cone 10
Standard base schedule
Degrees (Fahrenheit or Celcius)
C
Schedule Type
Rate
Start Time and Temperature
0:00 am (no temperature specified)
Program
| Step | Degrees/Hr | Temperature Monitor |
Hold Time |
Accumulated hrs:min |
Time | Note |
|---|---|---|---|---|---|---|
| 1 | 100 | 200 | 0 | 2:00 | 2:00 am | |
| 2 | 250 | 500 | 0 | 3:12 | 3:12 am | |
| 3 | 500 | 1260 | 0 | 4:43 | 4:43 am | |
| 4 | 9999 | 1075 | 30 | 4:44 | 4:44 am | |
| 5 | 9999 | 1100 | 5 | 4:44 | 4:44 am | |
| 6 | 9999 | 1075 | 30 | 4:44 | 4:44 am | |
| 7 | 9999 | 1050 | 5 | 4:44 | 4:44 am | |
| 8 | 9999 | 1075 | 50 | 4:44 | 4:44 am |
Notes
notes
